Fonts in NWN:EE have two main uses:

Main GUI fonts - these can be replaced to replace the in-game text usage
PostString - the usage here may include images and other "not really font" things (it's just a texture after-all) that PostString can display - you can define a custom font to use with the function and don't need to replace anything.

NWN:EE TrueType Fonts

NWN:EE 8193.21 and onwards (and on Android/iOS), the fonts (apart from PostString / debug console) are loaded from TTF file - TrueType Font. These are used to scale the in game fonts in a much more crisp way.

As of the above version the fonts also scale correctly in values such as 1.3x or 2.7x size rendering correctly up and down.

They also use anti-aliasing which makes them look a bit better on higher resolutions.

Main menu / Character Sheet Stats / Journal / Feat and Spell descriptions / Examine screen - fnt_maintext.ttf
Everything else - Conversations, Text Panel, Character Sheet info panel

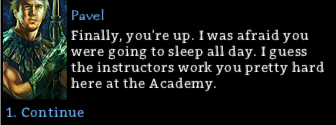

- High resolution Font option ON (serif font) - fnt_default_hr.ttf

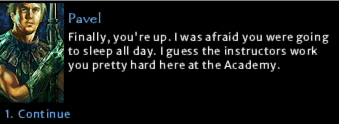

- High resolution Font option OFF (sans serif font) - fnt_default.ttf

As of 8193.26 adding a different version of fnt_default.ttf and fnt_default_hr.ttf to a hak will work client size. However, these fonts need testing to see if it will work with nwsync manifest correctly since they load at game launch, meaning only those in /ovr, /override or /development will activate correctly. To override simply use the same font name as for the thing you want to replace:

True Type Font Files

These are a list of the default game True Type fonts as of patch 8193.26. The file formats appear to be OpenType Layout with TrueType Outlines.

You can toggle the font type using the "High Resolution Font" game option.

TXI files for the default fonts were added to allow you to manipulate the opaqueness, brightness and outline of TTF fonts. Three new TXI settings were added to allow this: ttfContrast; ttfOutlineOpacity; and ttfOutlineBrightnes. Also the setting spacingR can help pad them. See the files themselves for details on the values.

In previous versions of EE where TTF's were available they used their original names but these were changed to the names in 8193.26 to make them clearer. Further confusing things, some beta patches changed bitter_reg.ttf to to the name brawler_reg.ttf to be consistent with the earlier name used for high res but it was still Bitter.

TTF fonts can be exported in NWNEXplorer. Previous to the latest patches the files were in \ovr in the game directory.

Font File Name

Name

Font

In Game

Description and Notes

fnt_default_hr.ttf

fnt_default_hr.txi

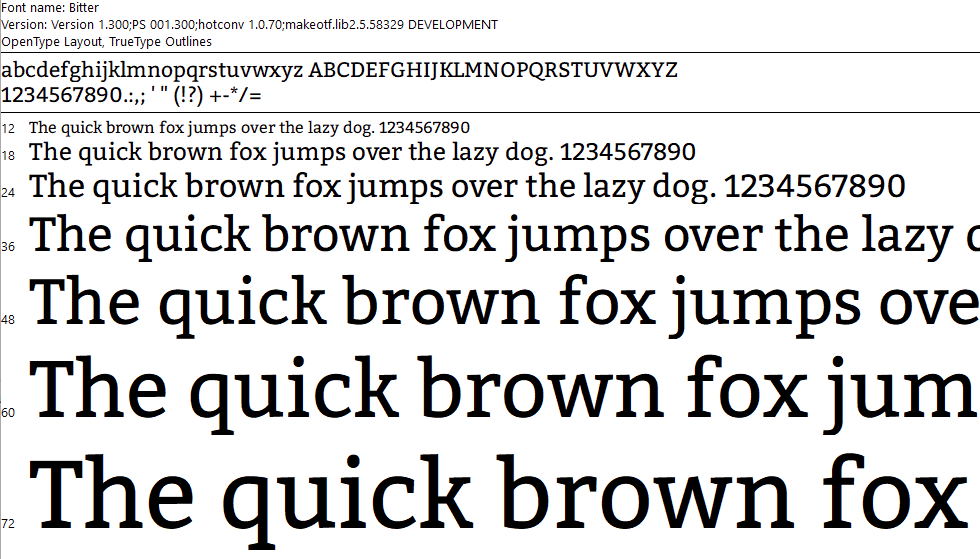

Bitter

previous file names:

bitter_reg.ttf

brawler_reg.ttf

check your version

"High Resolution" font (if the "High Resolution Font" game option is ticked), realistically "serif font" toggle - this is a serif font.

Text font for conversations, the PC's text panels and text input, bottom part of the Character Sheet, Chooser/Creator menus.

font_default.ttf

font_default.txi

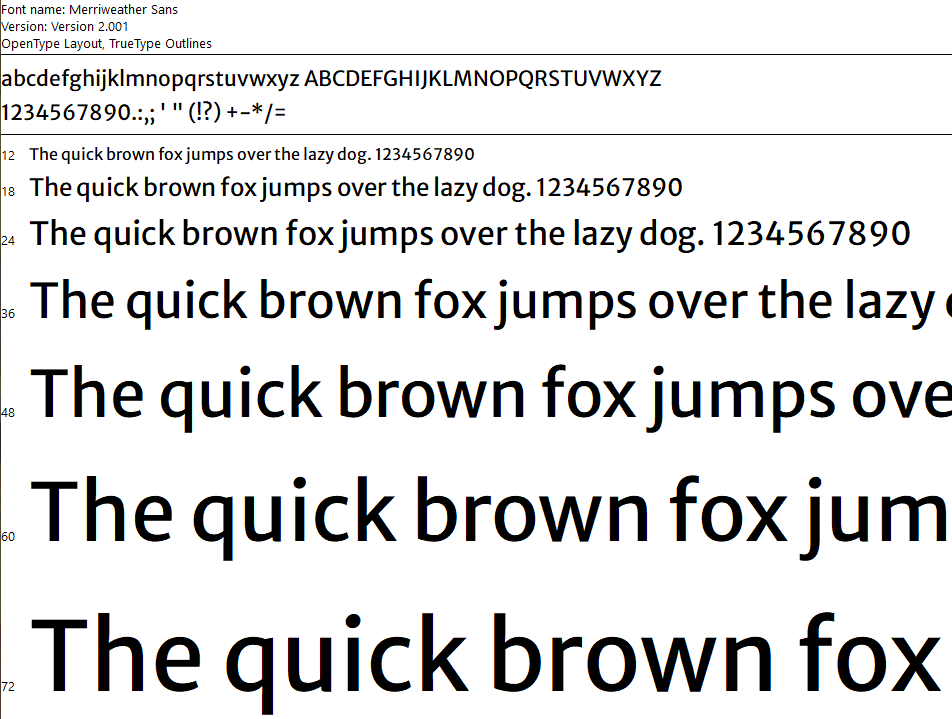

Merriweather Sans Regular

previous file name:

merriw_reg.ttf

"Low resolution" font (if the "High Resolution Font" game option is unticked), realistically a "serif font" toggle - this is sans serif.

Classic NWN style and used for conversations, the PC's text panels and text input, bottom part of the Character Sheet, Chooser/Creator menus.

fnt_maintext.ttf

fnt_maintext.txi

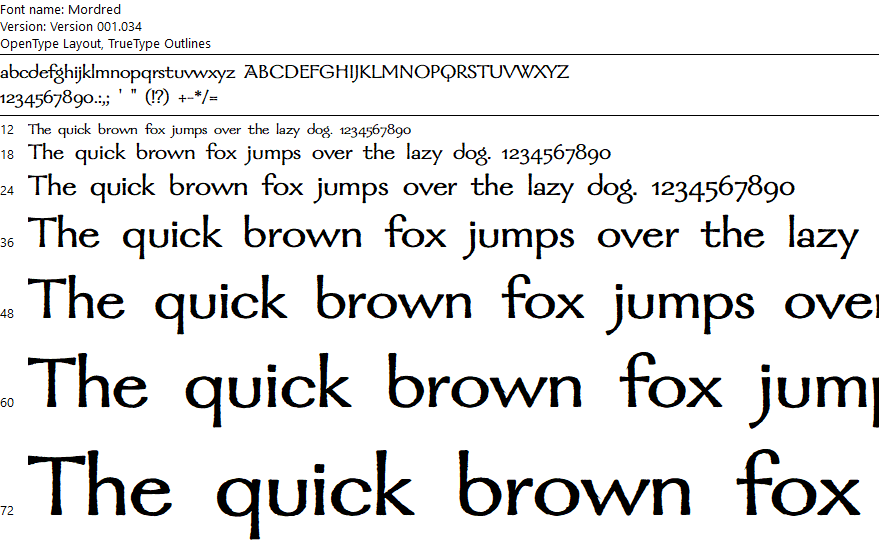

Mordred Bold

previous file name:

mordred_bold.ttf

"Neverwinter" font, ie things like the Main Menu, Journal, Character Sheet, Feat and Spell descriptions, and the Examine panel.

The main text font, fnt_maintext.ttf, is the only one that cannot be put in a hak. This can only be changed in a local client such as using the Override directory in your Documents\Neverwinter Nights folder.

1.69, Earlier NWN:EE and PostString

Fonts are loaded from TGA/DDS and TXI files. TGA/DDS shows the actual text while TXI is used to decide which character is at which position. PostString uses this method regardless (allowing, for instance, images to be loaded since the "font file" is just a big texture). However one note is PostString now scales as of version 8193.21.

Texture File

Always a good idea to use a TGA file for fonts for maximum readability. Since DDS is loaded first by the game, you would have to use a DDS file to replace some of the below fonts if a DDS of it is present.

TXI file

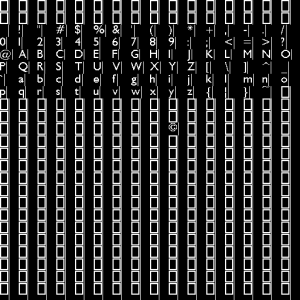

The order is in ASCII order with the coordinate value of each ASCII character.

Font Maker

This should still work for NWN:EE pre-8193.21:

https://neverwintervault.org/project/nwn1/other/tool/nwn-font-maker

Noting this comment:

Note that by default this will actually only make 1/3 of the files for a complete font.

fnt_dialog16x16.tga
fnt_dialog16x16.txi

The Good news is you can copy the files and rename them, for a full font set.

fnt_dialog16x16.tga
fnt_dialog16x16.txi
fnt_dialog_big16.tga
fnt_dialog_big16.txi
fnt_galahad14.tga
fnt_galahad14.txi

Default Game Fonts

Font Texture File Name	Font TXI File Name	Description and Usage
fnt_chatspacer.tga	fnt_chatspacer.txi	Presumably...space in chat
fnt_console.tga	fnt_console.txi	Console ( ` key) and default PostString font
fnt_dialog.tga	fnt_dialog.txi	Unused by the game.
fnt_dialog_big16.tga	fnt_dialog_big16.txi	Default/"large" conversation font.
fnt_dialog16x16.tga	fnt_dialog16x16.txi	"Small" dialog font
	fnt_dialog32x32.txi	May not actually be used in the game since can't find TGA file
fnt_bbcs0.dds fnt_dbcs1.dds fnt_dbcs2.dds fnt_dbcs3.dds fnt_dbcs4.dds fnt_dbcs5.dds fnt_dbcs6.dds fnt_dbcs7.dds fnt_dbcs8.dds fnt_dbcs9.tga	fnt_dbcs.txi	Presumably for foreign languages - although not the default NWN game.
fnt_floaty_smal.tga	fnt_floaty_smal.txi	Floating numbers
fnt_galahad14.dds	fnt_galahad14.txi	Main menu stuff. "Neverwinter Nights" font.

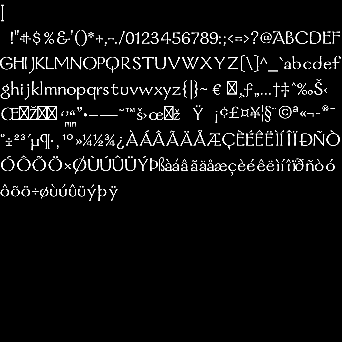

fnt_galahad56.tga		May not actually be used in the game since can't find TXI file
	fnt_helvetica.txi	May not actually be used in the game since can't find TGA file
	fnt_stonehenge.txi	May not actually be used in the game since can't find TGA file
